Your windshield wipers are crucial for your road safety, but they’re only as effective as each and every one of their components. Most drivers are quick to replace worn-out wiper blades, overlooking the wiper arm. A damaged or worn wiper arm disrupts the wiper blade’s contact with the windshield, causing streaks and reduced visibility.
To replace a windshield wiper arm, start by identifying the type you have: either a traditional-style or a hook-style arm. Generally, you’ll need to remove the retaining clip/nut to detach the old arm from the mounting post. Then, install a new, properly aligned replacement before securing it.
Here’s a guide on replacing windshield wiper arms and determining whether you need to replace the arm or just the blade. There’s also a professional, step-by-step approach for front and rear windshield wiper arms.
What Is a Windshield Wiper Arm?
You can’t fix something that you don’t understand, so we need to start with the basics.
A windshield wiper arm is part of the windshield wiper system that moves the wiper blade across the windshield. It connects to an electric motor, converting the motor’s movement into a back-and-forth motion that cleans the windshield of debris and precipitation.
On the other end, the wiper arm attaches to the wiper blade, providing a greater range of motion and more precise cleaning.
Front wiper arms are typically larger to cover a wider surface area, while rear wiper arms are smaller and sometimes have a protective cap over the retaining nut.
Key Components of a Wiper Arm
While designs vary slightly by vehicle, most wiper arms feature:
1. Arm Body
It’s the main structure, extending from the base to the blade. It’s made of metal or, sometimes, composite.
2. Spring Mechanism
The spring applies pressure to keep the blade pressed evenly against the windshield. You need to be careful when handling wiper arms because the spring mechanism causes some nasty snap-backs when you’re sloppy.
3. Hinge Joint
It allows the arm to lift away from the glass for blade replacement or cleaning. Here’s how to clean windshield wipers.
4. Mounting Head (Attachment Point)
This component joins the arm to the wiper motor shaft.
How to Know Whether to Replace the Wiper Arm or Just the Blade
Why would you replace an entire wiper just because one of the components is slightly bent or misaligned? Now that you know what each component of the wiper arm is and does, you’re empowered enough to carry out inspections yourself.
Signs You Only Need to Replace the Wiper Blade
In many cases, the blade is the culprit. Look for:
1. Streaking or Smearing
Is the rubber worn, cracked, or hardened?
2. Squeaking or Chattering
Is the blade edge no longer making smooth contact with the glass?
3. Visible Wear on Rubber
Is the rubber splitting or peeling, and are its edges uneven?
Signs the Wiper Arm Needs Replacement
The next step is checking for:
1. Loose Fit
Does the arm move up and down or wiggle? Are there any rust spots at the connection points?
2. Rust Development
Are there visible signs of corrosion on the wiper arm?
3. Bent or Damaged Wiper Arm
Is the wiper arm visibly bent, twisted, or damaged in any way? It happens from excessive force being applied during use, and is the main cause of windshield wipers not working.
4. Skipping or Stuttering
Do you hear a stuttering noise when the wipers are in use? This could be a sign of worn-out blades, but it can also indicate an issue with the wiper arm.
5. Cracked Rubber on Wiper Blades
Check if the rubber on the wiper blade is cracked or split. If so, it may be time to replace not just the blades, but also the entire wiper arm.
Cost Difference: Blade vs. Arm Replacement
- Wiper blades are inexpensive and quick to replace.
- Wiper arms cost more and require tools, but are still a manageable DIY job.
Correctly diagnosing the issue can save you time and ensure you fix the problem the first time.
Tools & Materials You’ll Need
Before you begin, gather everything you need to ensure a smooth process and avoid interruptions mid-repair.
Basic Tools
Most wiper arm replacements require only a few common tools, such as:
1. Socket Wrench or Spanner
Used to remove and tighten the retaining nut at the base of the arm.
2. Screwdriver
Some vehicles use clips or screws that need to be removed first. A flat head or Phillips screwdriver can do the job.
3. Pliers
Sometimes you’ll need pliers to remove the retaining clip or pin that secures the arm in place. Needle-nose pliers are especially useful for this task.
Recommended (Optional) Tools
1. Wiper Arm Puller Tool
This too is helpful for removing stuck or corroded arms without causing damage.
2. Protective Towel or Cloth
You place it on the windshield to prevent cracks or scratches if the arm snaps back.
Replacement Parts
1. New Wiper Arm (Vehicle-Specific)
Ensure it matches your vehicle’s make, model, and year for proper fit and alignment because different cars have different-sized windshields and wiper arm types.
2. Compatible Wiper Blade
If your old blade is worn, this is a good time to replace it. Old blades will render your new wiper arms ineffective and even be more prone to breaking. Ensure the blade size and type match your new wiper arm.
Here’s how often to replace windshield wipers.
How to Remove the Windshield Wiper Arm
We’re now prepared and knowledgeable, so let’s get to the most important part. A step-by-step guide on how to remove the windshield wiper arm.
1. Lift the Wiper Arm

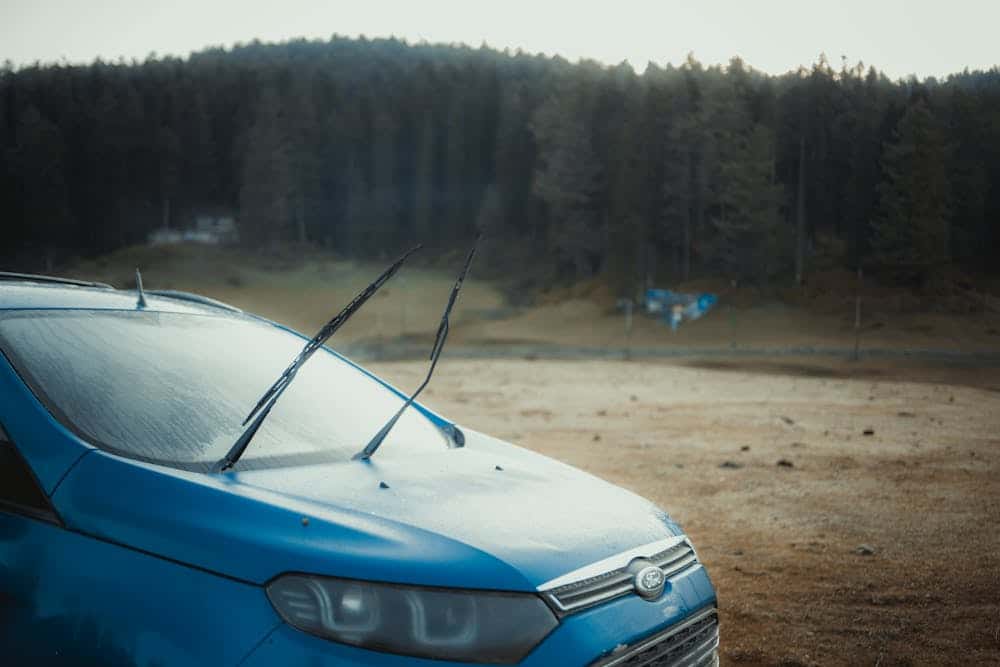

Raise the wiper arm up and away from the windshield. If your vehicle has a hood that covers part of the wiper, lift it to access the wiper arm base.
2. Place Protective Towel/ Cloth
Place a protective towel or cloth on the windshield to prevent damage if the arm potentially snaps back.
3. Locate the Connecting Nut
At its base, you’ll find a small connecting nut holding the arm in place.
4. Unscrew the Nut
Using a wrench or pliers, carefully unscrew the connecting nut counterclockwise to release the wiper arm from its base.
5. Pull Out Retaining Clip
On some vehicles, a retaining clip may hold the wiper arm in place. Use a pair of pliers to carefully pull out this clip before attempting to remove the arm.
6. Mark the Original Position
Before removing the wiper arm completely, use a marker or tape to mark the arm’s original position on the windshield. Make it easier to align the new wiper arm in the correct position.
7. Detach the Wiper Arm
- Gently wiggle the arm while pulling upward.
- If it’s stuck, use a wiper arm puller to safely remove it.
Common Challenge
Corrosion can lock the arm onto the spindle. Avoid excessive force, as it could damage the motor or linkage.
How to Replace a Front Windshield Wiper Arm
Congrats, you’ve successfully and safely removed the old, faulty wiper arm! You don’t have the time to start celebrating; you need to move on to the next step as soon as possible.
Installing the new one isn’t complicated, but you must focus on proper alignment.
Step-by-Step Installation
Step 1: Position the New Arm
Align the new wiper arm with the mounting post.
Step 2: Set the Correct Resting Position
Remember the markings we made earlier on the windshield? They’ll come in handy in setting the new arm’s resting position.
Step 3: Secure the Arm
Reinstall the retaining nut or clip and tighten it firmly. Avoid overtightening to prevent stripping the threads.
Step 4: Attach the Wiper Blade
Attach the new wiper blade to the arm by sliding it onto the hook or clip on the end of the arm. Ensure it’s securely attached and not loose.
Step 5: Test the Wipers
Turn on your car, and run the wipers to confirm:
- Smooth motion.
- Proper alignment.
- No skipping or noise.
Pro Tip
Test with washer fluid to simulate real conditions and ensure full windshield coverage.
How to Replace a Rear Windshield Wiper Arm
Follow the same process we’ve discussed for your rear windows, but may need additional coverings and tighter mounting.
Key Differences to Know
- Rear arms are typically shorter in length.
- Arms may have different shapes or mounting mechanisms.
- Requires additional care due to its smaller size and location.
- Rear arms have an additional cap over the nut.
Step-by-Step Replacement
Step 1: Remove the Protective Cap
Use a flathead screwdriver to gently pry off the cap covering the retaining nut.
Step 2: Loosen and Remove the Nut
A socket wrench will be handy for removing the nut.
Step 3: Detach the Old Arm
Pull the arm away from the mounting post with a puller tool.
Step 4: Install the New Arm
Align it in the correct parked position, especially for rear visibility.
Step 5: Secure and Reassemble
Tighten the nut, replace the cap, and ensure everything is snug.
Step 6: Test Operation
Activate the rear wiper and confirm smooth, complete coverage.
Common Mistakes to Avoid
We must emphasize the need to use the correct size and type of wiper arm. Alignments are everything, and a simple repair can go wrong if you overlook key details.
Installation Mistakes
1. Misalignment
If you forget to mark the original position as we agreed earlier, you’re likely to misalign the arm, causing blade interference.
2. Overtightening the Nut
Too much force can damage threads or crack components.
3. Using the Wrong Part
Wiper arms are vehicle-specific, so always verify compatibility.
Removal Mistakes
1. Forcing a Stuck Arm
You don’t want to damage the wiper linkage or motor while removing a rusted arm.
2. Skipping Cleaning
Grime in the wiper pivot can jam your new blade, cause wear, or reduce its effectiveness.
3. Not Preparing for a Replacement Blade
Take note of any tabs, buttons, clips, or other fastening mechanisms that hold the old blade in place.
4. Skipping Windshield Protection
A rusted or corroded arm can scratch your windshield when you’re removing it. To prevent this, place a towel or cloth on the windshield before starting the removal process.
Tips for Maintaining Your Wiper Arms
Proper maintenance extends the life of your wiper arms and blades.
Routine Care
1. Clean the Wiper Arms Regularly
Clean off the dirt and debris.
2. Inspect Spring Tension
The arm should maintain firm, even pressure on the windshield to prevent the blades from smearing.
3. Replace Blades on Schedule
Worn blades can strain the arm and cause it to bend faster than it should.
Seasonal Maintenance
1. Prepare for Winter
Ice and snow can damage wiper arms, so never force them loose.
2. Check Before Rainy Seasons
Ensure optimal performance when visibility matters most.
When to Call a Professional Auto Glass Technician
Some situations require more than a DIY fix.
Signs You Need Professional Help
1. Severely Corroded or Stuck Arms
Specialized tools may be necessary to prevent damage.
2. Wiper Motor or Linkage Issues
Improper movements suggest a deeper problem.
3. Risk of Windshield Damage
If you’re unsure, why not let a professional handle it?
4. Convenience & Peace of Mind
Professional installation ensures proper fit, alignment, and performance, saving you time and potential headaches.
Why Call Rite-Way Auto Glass
Replacing a windshield wiper arm is a manageable DIY task when you have the right tools and know what to look for. However, proper alignment, safe removal, and correct part selection are critical.
The smart move is to call Rite-Way Auto Glass when you run into stuck components, alignment issues, or want to avoid damaging your windshield.
With over 75 years of experience, our team delivers fast, precise service you can trust. We get you back on the road with clear visibility and complete peace of mind.
